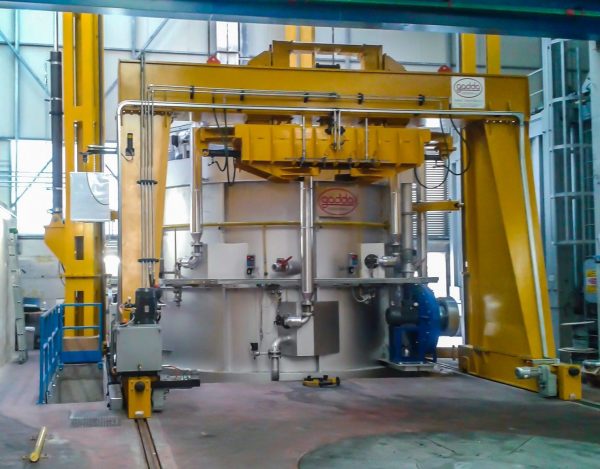

Bell furnace automatic plant # 1291

Bell furnace in nitrogen atmosphere for wiring rod heat treatment with controlled cooling capability. Inert atmosphere recirculation is performed by a fan and a diffuser integrated in the base. The furnace is loaded by an automatic loading machine. Heating is performed by high speed gas burners with heat recovery from exhaust gasses.


Bell furnace automatic plant # 1291

Load weight

15.000 kg


950 °C

Chamber dimension

Diameter:   3.500 mm
Height:       2.500 mm

Load weight

15.000 Kg

Temperature uniformity

– from 700 °C to 900°C ± 8 °C

Max temperature

– 950 °C
